Phonema speaker

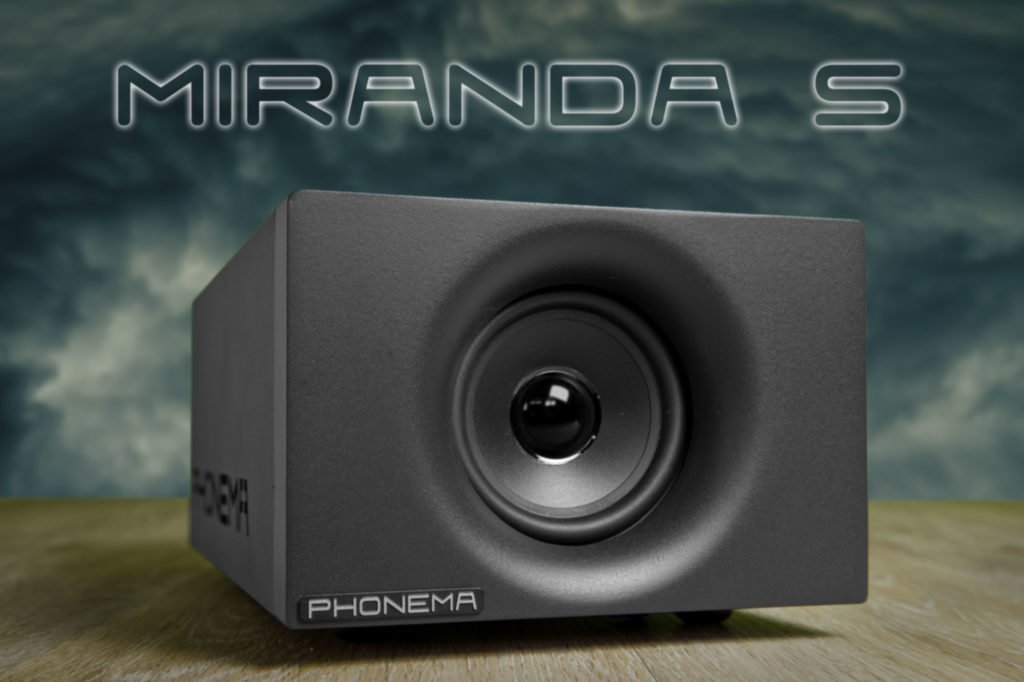

Miranda S

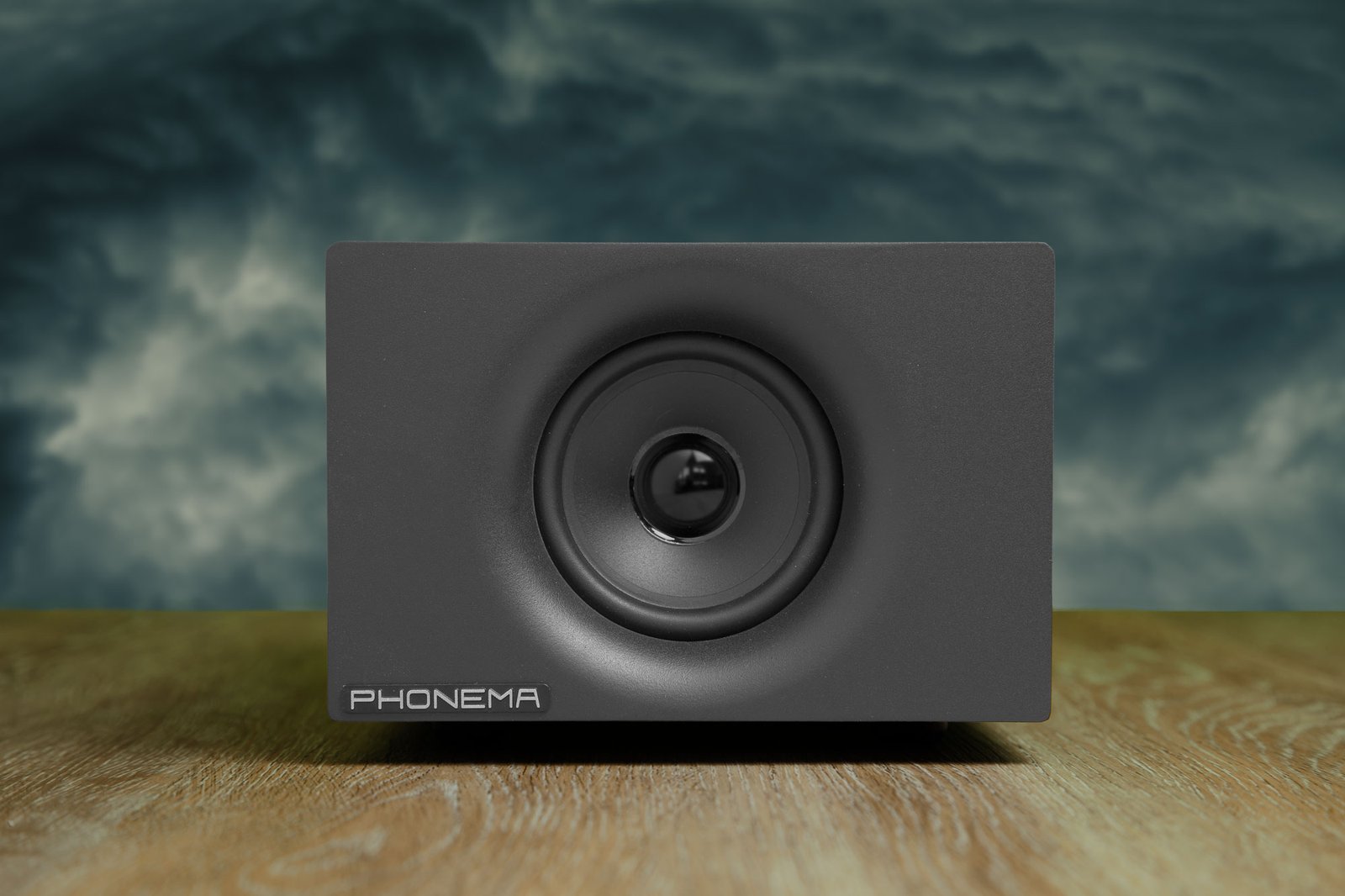

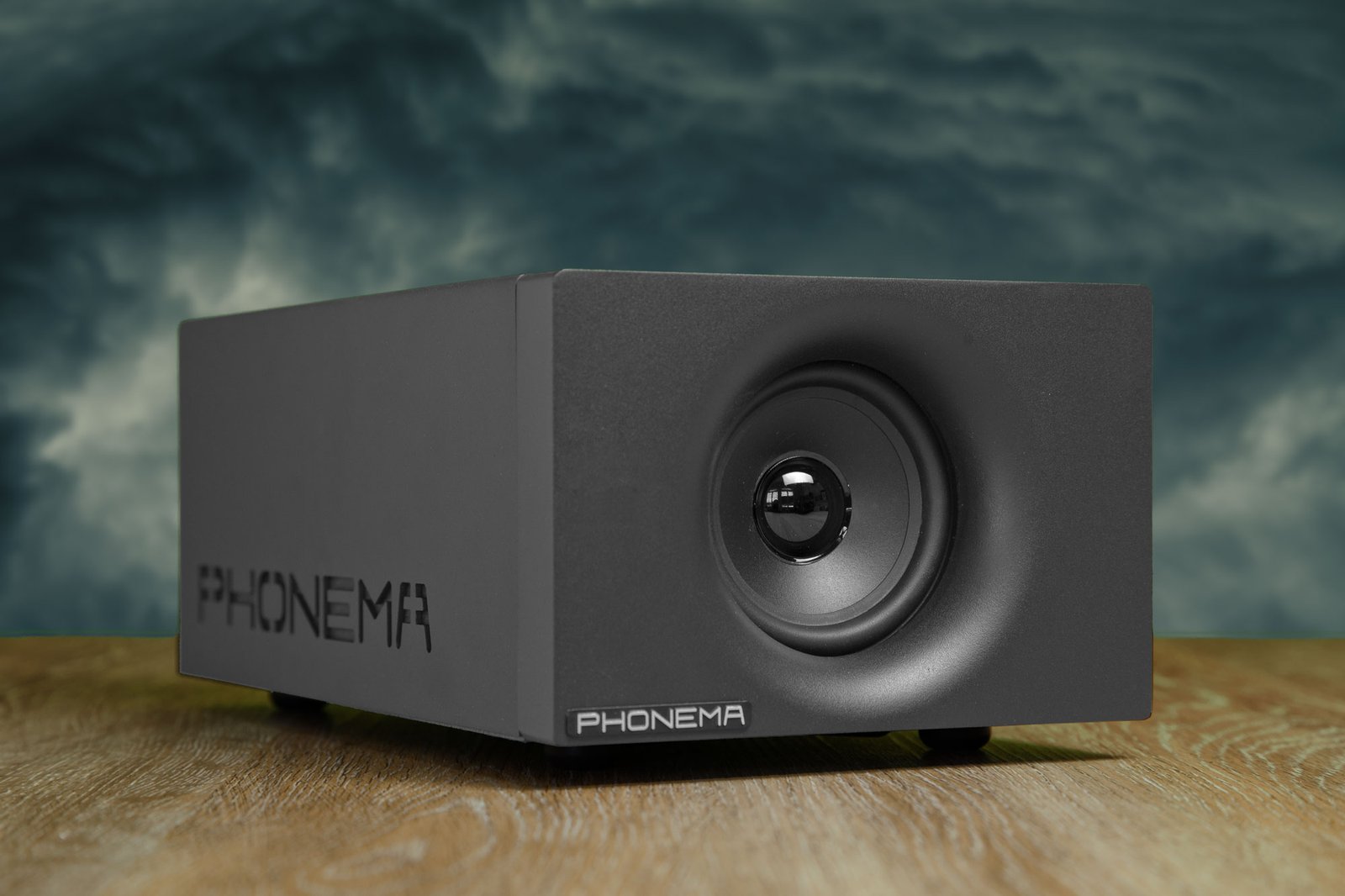

The membrane sits at the centre, with no grille or cloth in front of it, for the clearest possible voice.

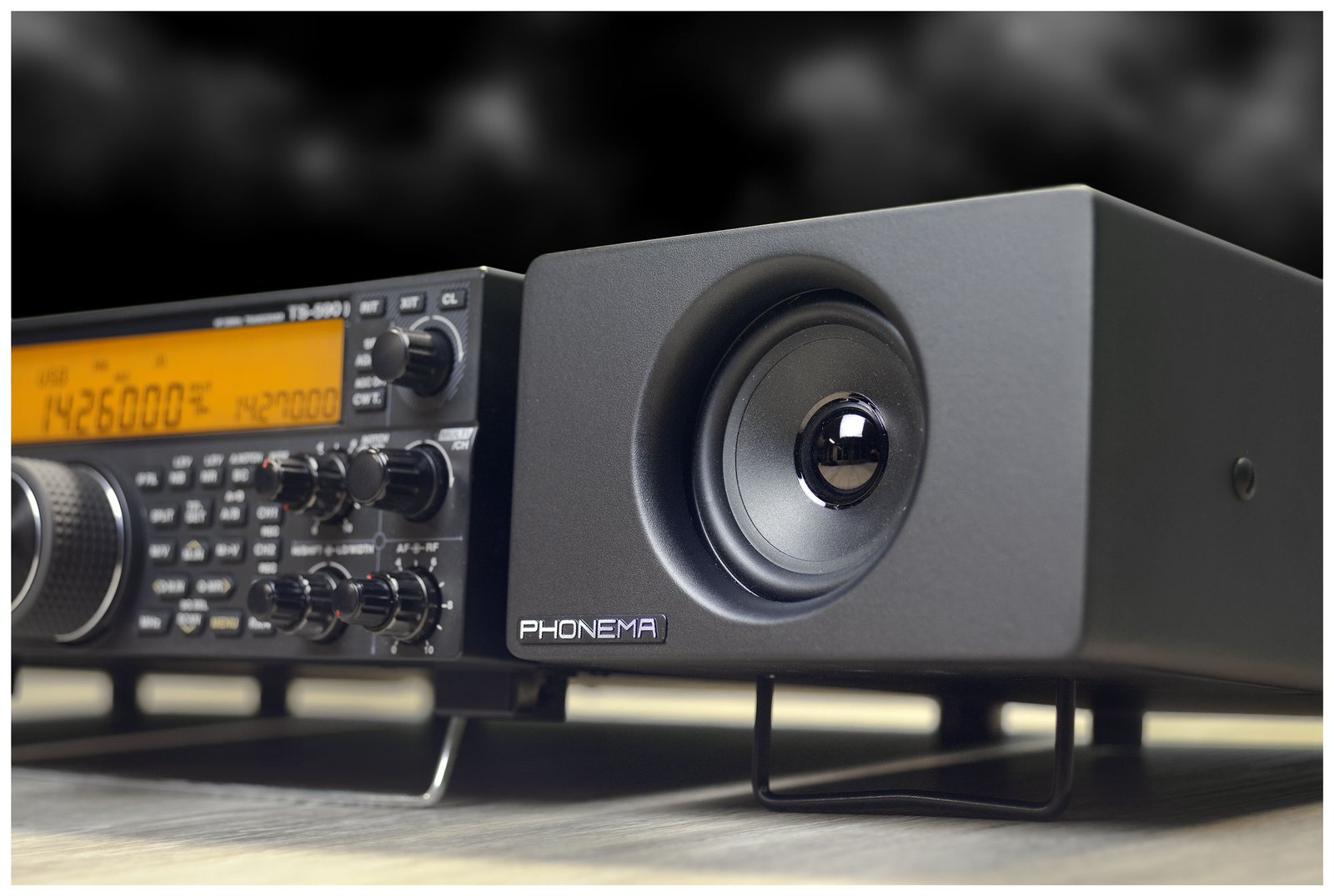

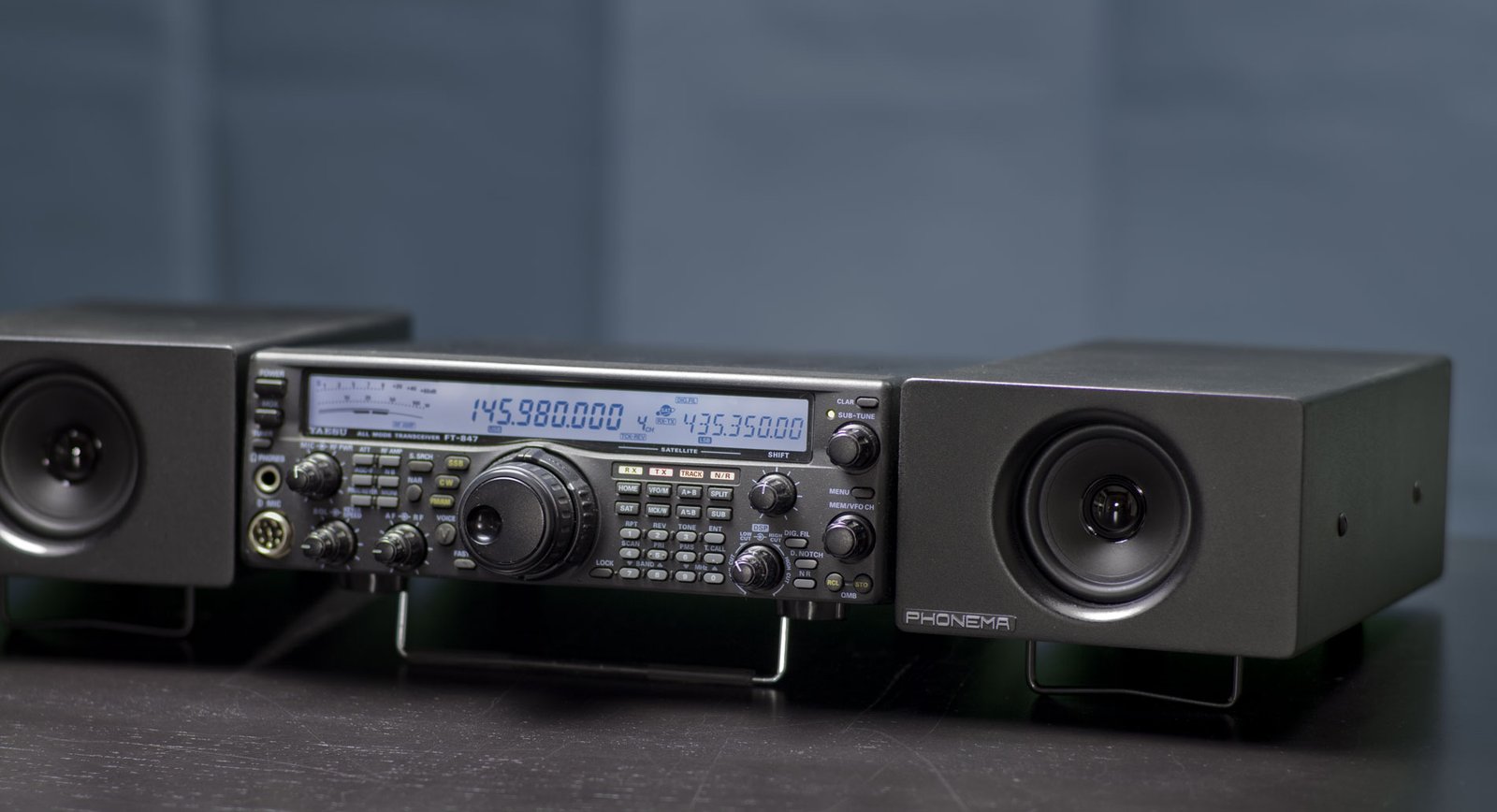

The Miranda speaker match the following transceivers:

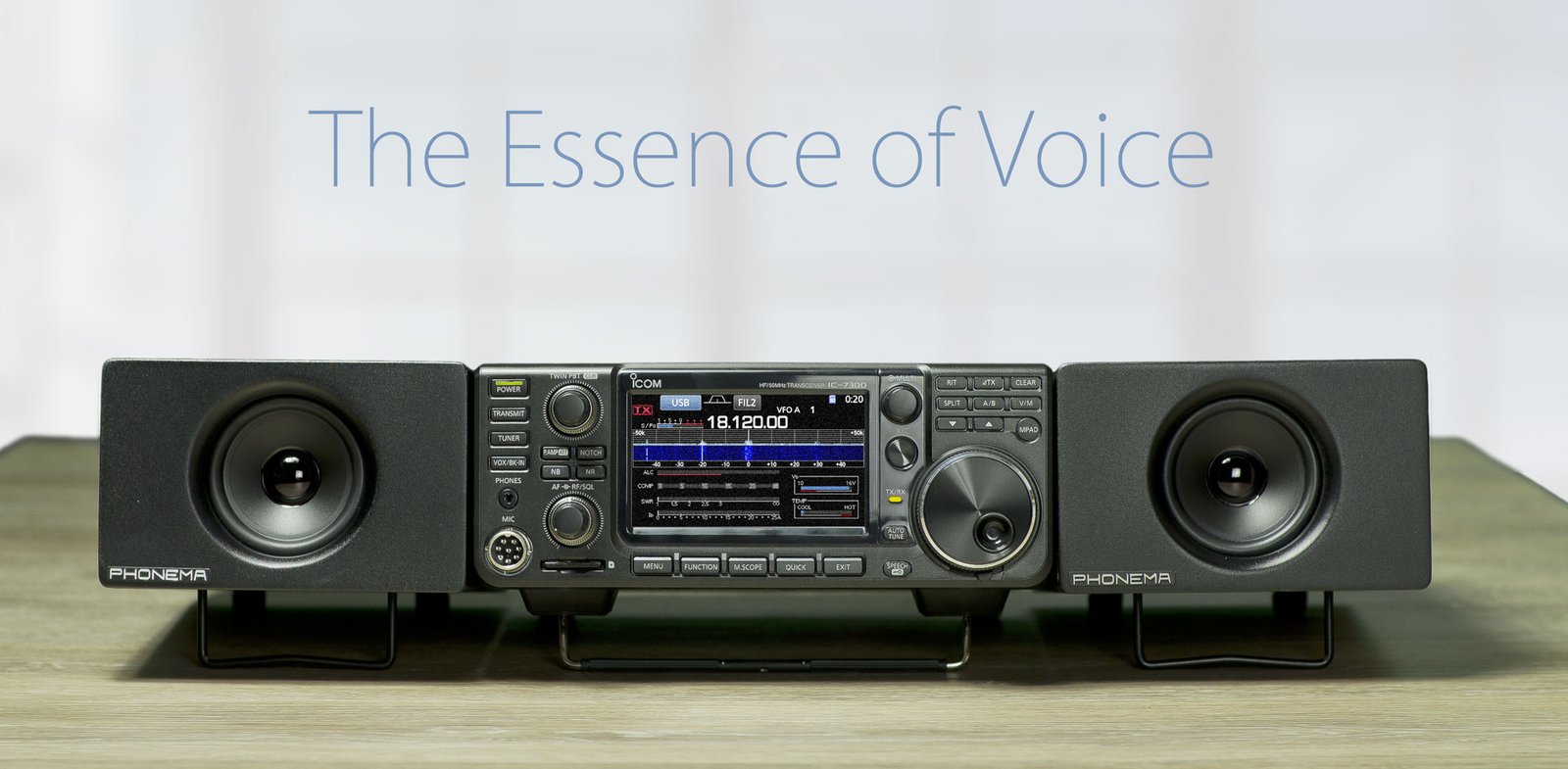

Icom IC7300, IC725, IC728, IC730, IC735, IC821, IC910, IC9700.
Yaesu FT890, FT707, FT900, FT840, FT757, FT747, FT650 FT-847 and FT77.
Kenwood TS590, TS570, TS2000, TS450, TS440, TS430, TS711, TS811, TS140, TS680.
TenTec Delta II and Argonaut II
And other transceivers with similar dimensions.

Excellent acoustic materials for best sound and the most confortable listening.

Minimalist design, high performance driver and best acoustic feature

Clearest SSB and loudest broadcast signals

More information

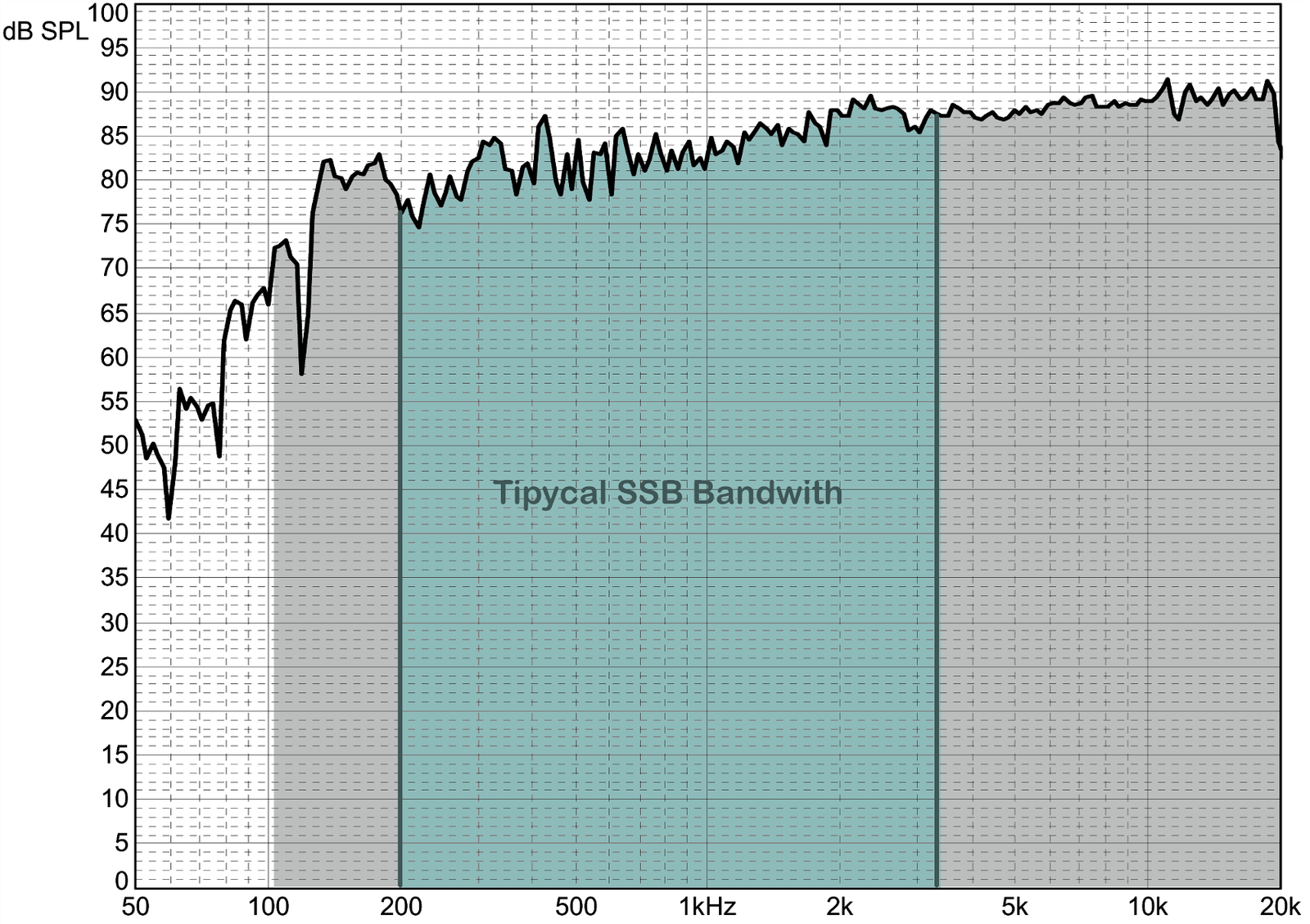

Frequencies between 200 and 320 Hz have a certain attenuation that mitigates the QRM. From 320 Hz onwards, sensitivity stays around 83 dB up to 1.2 KHz. Then, it rises to 88 dB between 2
and 2.8 KHz.
In the bass sounds region the curve has an important emphasis between 120 and 200 Hz. This feature offers the option to enjoy very solid bass sounds, both to AM listening and to opening the SSB filter with wider signals.
Between 3.1 KHz and 18 KHz, Miranda offers a fairly flat curve that ensures good sound for broadcast signals.

Box material:	5-16 mm MDF

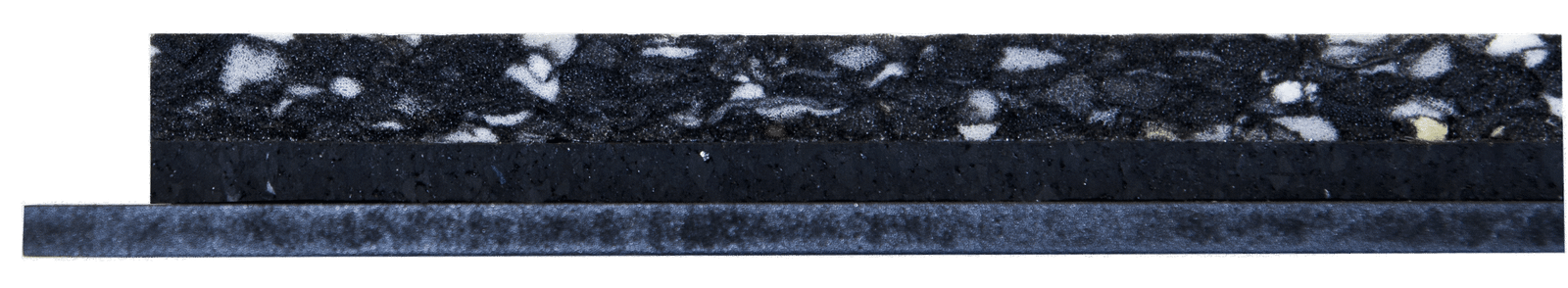

Inside meterial:	Acoustic Foam AG150 and Basotect
Power:	10 w
Impedance:	8 ohms
Frequency response:	120 – 18000 Hz
Sensitivity:	83 dB
Driver protection:	IP64
Dimensions (WHD):	154x102x257 mm / 6,06 x 4 x 10,11 in
Weight:	1,8 Kg / 3,96 lb
